Back to the Future DeLorean - Package 008

Description

Stage 032 contains the parts that add the fuel tank and the battery box.

Parts

Stage 032 contains the, Battery Box, Fuel Tank, Tabs (to hold down wire), (3) KM Screws, (6) FP Screws.

Click this link to view a photo of the parts, excluding the screws. These parts will complete Stage 032.

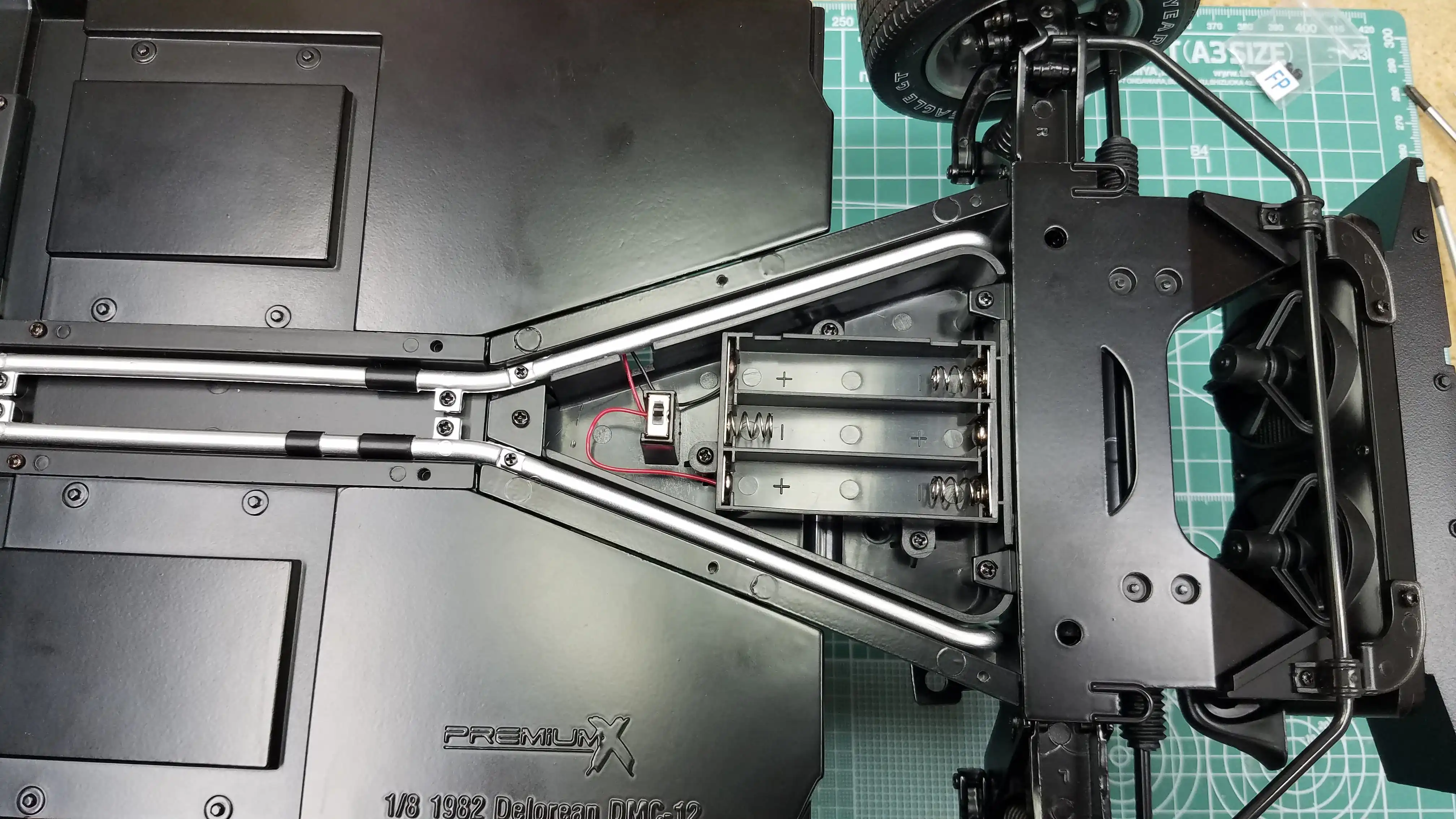

Finished Stage 032

Click this link to view a photo of this assembly image.

Click this link to view a photo of this assembly image.

Click this link to view a photo of this assembly image.

Description

Stage 033 contains the fuel tank bottom plate and battery box lid.

Parts

Stage 033 contains the Fuel Tank Bottom Plate, Battery Box Cover, (4) BM Screws, (2) LM Screws.

Click this link to view a photo of the parts, excluding the screws. These parts will complete Stage 033.

Finished Stage 033

Click this link to view a photo of this assembly image.

Description

Stage 034 contains chassis parts.

Parts

Stage 034 contains the Chassis Front Upper Plate, Reservoir, (4) DM Screws, (3) FP Screws.

Click this link to view a photo of the parts, excluding the screws. These parts will complete Stage 034.

Finished Stage 034

Click this link to view a photo of this assembly image.

Click this link to view a photo of this assembly image.

Description

Stage 035 contains the Left and Right Front Wheel Arches (Front Fender Wells).

Parts

Stage 035 contains, Front Left Wheel Arch (Left Front Fender Well), Front Right Wheel Arch (Right Front Fender Well), (4) DM Screws.

Click this link to view a photo of the parts, excluding the screws. These parts will complete Stage 035.

Finished Stage 035

Click this link to view a photo of this assembly image.

Click this link to view a photo of this assembly image.

The Left Water Rail is installed in a similar manner and is not shown in this picture.
