Stage 022 contains the parts for the engine fuel distribution
system.
Parts
Stage 022 contains more parts primarily of the engine fuel delivery
system. Parts included are: Bracket, Cover, Arm, Throttle Control,

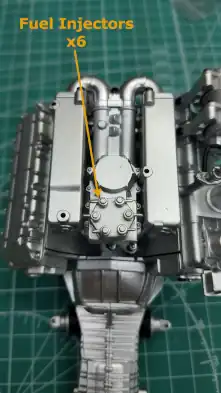

Thermostat, Fuel Distributor, Fuel Injectors, Mixture Control Unit,
Mixture Unit Housing and Throttle Valve Assembly, Intake Manifolds,

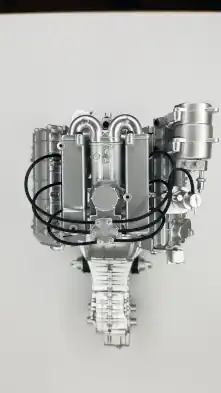

(2) Short Hoses, (2) Medium Hoses, (2) Long Hoses, (13) AP Screws and
(1) MM Screw.
Stage 023 contains more engine parts, primarily the
Distributor and Mounting Brackets.
Parts
Stage 023 contains the parts for the Distributor and Mounting

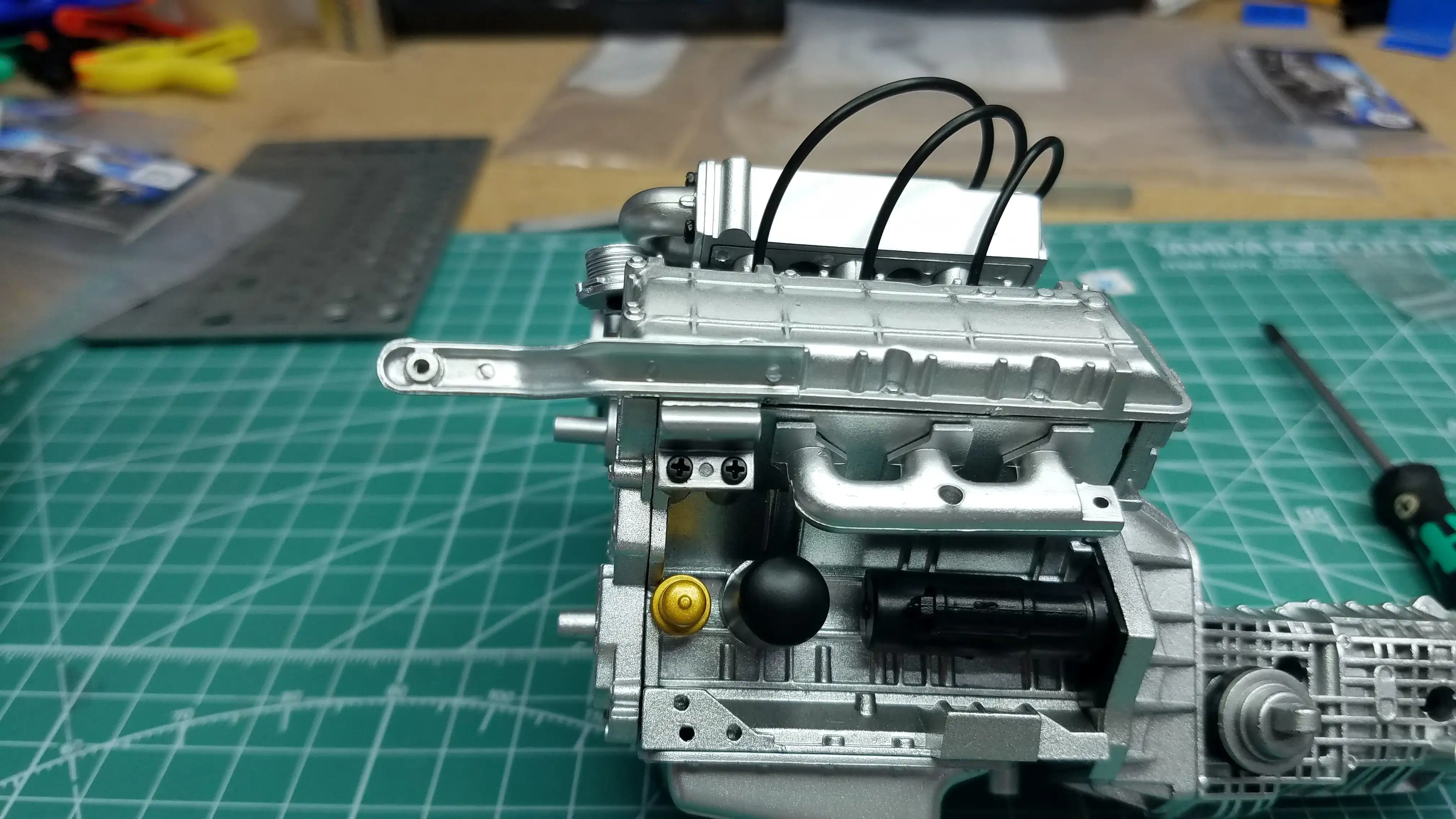

Brackets. It includes the, Distributor Bracket, Engine Side
Bracket, Distributor Front, Distributor Rear, Transmission Case
Left Bracket, Transmission Case Right Bracket, Dip Stick,
(3) AM Screws, (4) DM Screws and (3) AP Screws.
Stage 023 Package, Actual Parts and Graphical Parts
Stage 023 contained the wrong Transmission Case Brackets. This picture
shows the difference between the brackets that came in the kit and the
brackets that should have come in the kit. I contacted Fanhome and they
were very nice about it. They sent me a new Stage 023 with the correct
brackets and I didn't have to return the original package.
Stage 023 Wrong Transmission Case Brackets were sent
compared to what the correct brackets should look like
Stage 024 contains more engine parts and includes the pulleys
and belts.
Parts
Stage 024 contains more engine components and includes: a three
piece pulley for the Crank, a three piece pulley for the A/C
Compressor, a two piece pulley for the Alternator, the Alternator

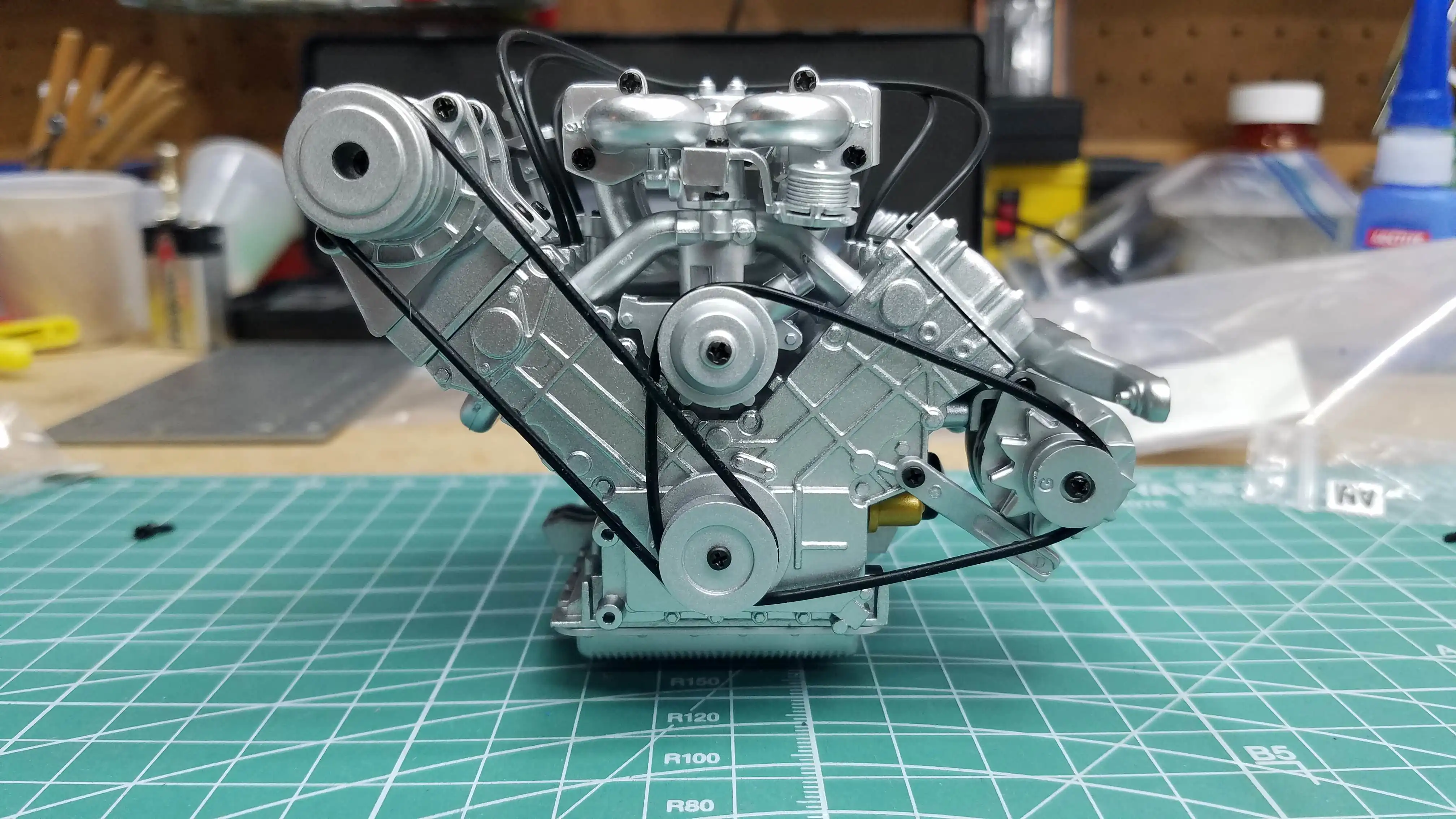

Fan, the Alternator Belt, the A/C Compressor Belt, (3) AP Screws
and (1) AM Screw.
Stage 025 contains more engine parts and includes (3)
brackets and exhaust pipes.
Parts
Stage 025 contains more parts for the engine including, (3) mounting brackets,
the Right Front Exhaust Pipe,the Left Front Exhaust Pipe, (4) AM Screws,
(2) NM Screws and (3) AP Screws.
Stage 026 contains more engine parts including, Exhaust Silencer,
Pipes and Connectors.
Parts
Stage 026 contains more parts for the engine including, the Front
and Rear Silencer, (2) Exhaust Pipes, (1) Connector, (1) Left
Connector, (1) Right Connector, (2) Boots, (1) AM Screw, (3) DM Screws,
(5) AP Screws, (2) EP Screws and (2) FP Screws.
