Stage 007 & Stage 008 contain the parts for the steering rack, linkage, front plate, anti-roll bar and bottom plate.
Stage 007 - Pinion, Pull Rod, Front Plate, Steering Rack, and Boots, (2) FM Screws.
Stage 008 - Bottom Plate, Left Anti-Roll Bar Base, Right Anti-Roll Bar Base and Anti-Roll Bar, (4) AP Screws.
The image of Stage 007 & Stage 008 assembled parts will be shown in a stage 10.
Return to Stage Navigation Menu
Return to Stage Navigation Menu

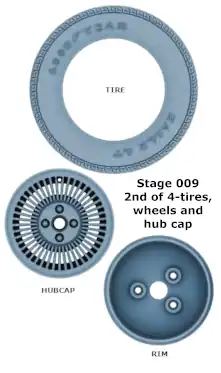

Stage 009 contains the parts to complete another of the four tires, rims and hubcaps.
Tire, Hubcap, Rim, Hub, Washer and (3) BP Screws. Do not install the washer and hubcap at this time, even thought the instructions tell you to do so. It will have to be removed in a later stage. Therefore; store them in a safe place.
Return to Stage Navigation Menu
Return to Stage Navigation Menu
Stage 010 contains the frame and fixing screws. In this stage, the steering linkage, front suspension and wheels are installed that were assembled and built in previous stages.
Stage 010 contains only the frame and the screws that will be required later. Parts included: Frame, (4) AP Screws, (4) GM Screws, (6) DM Screws, (4) BM Screws and (3) AM Screws.
Return to Stage Navigation Menu
Return to Stage Navigation Menu

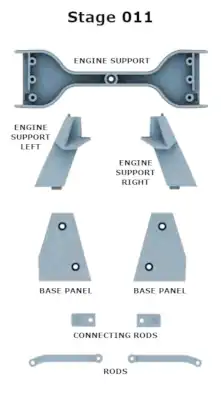

Stage 011 contains the parts for the Engine Support Cross Member, the Engine Support Left, the Engine Support Right, the Base Panel Left, the Base Panel Right, (12) DM Screws and (2) HM Screws.
Stage 11 contains the Engine Support, the Engine Support Left and Right, (2) Base Panels, (2) Connecting Rods and (2) Rods, (12) DM Screws and (2) HM Screws.
