Skip' Messy Workbench - Package 002

Description

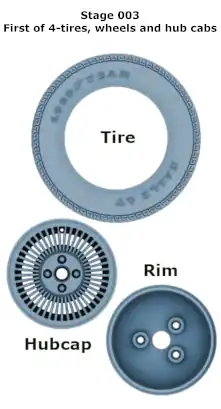

Stage 003 contains the parts to complete one of the four tires, rims and hubcaps

Parts

Tire, Hubcap, Rim, Hub, Washer and (3) BP Screws. Do not install the washers and hubcap at this time, even though the instructions tell you to do so. It will have to be removed in a later stage. Therefore; store them in a safe place.

Click/tap the image to zoom

Finished Stage

Click/tap the image to zoom

Stage 004

Description

Stage 004 contains the parts to build and complete the Mr. Fusion Chamber, reactor disc elements and body work.

Parts

Mr. Fusion Chamber 01, Mr. Fusion left half, Mr. Fusion Chamber 02, Mr. Fusion chamber 02, Mr. Fusion right half, Mr. Fusion Lid, Reactor Disc, Hinge 01, Reactor Disc (Yellow), Mr. Fusion Hatch, Hinge 02, Reactor Disc (Black), Mr. fusion Chamber 03, Hinge 03, (2) Springs, Reactor Disc base, Body work, (6) CP Screws, (18) AP Screws.

View this video from the World of Wayne Youtube Channel for a much better way to install the small springs in the Mr. Fusion Hinge than how the stage instructions tell you do install them.

Click/tap the image to zoom

Finished Stage

Completed Mr. Fusion Reactor Closed — Stage 004 Mr. Fusion Closed

Click/tap the image to zoom

Completed Mr. Fusion Reactor Open — Stage 004 Mr. Fusion Open

Click/tap the image to zoom

Completed Reactor Disc — Stage 004 Reactor Disc

Click/tap the image to zoom

The Yellow turn handle on the reactor disc may need to be glued in place. I used Gorilla Glue Paste.

Stage 005 & Stage 006

Description

Stage 005 & Stage 006 contains the parts to complete the left (Stage 005) and right (Stage 006) front suspension and brake.

Parts

Stage 005 - Left Front Suspension, Lower Link, Shock Absorber, Coil Spring, Control Arm, Brake Caliper, Positioning Column, Spring, Left Front Tie Head, Brake Disc, (2) AM Screws, (2) BM Screws, (2) CM Screws, (3) DM Screws, (1) EM Screw, (1) AP Screw, (1) DP Screw.

Stage 006 - Right Front Suspension, Lower Link, Shock Absorber, Coil Spring, Control Arm, Brake Caliper, Positioning Column, Spring, Right Front Tie Head, Brake Disc, (2) AM Screws, (2) BM Screws, (2) CM Screws, (3) DM Screws, (1) EM Screw, (1) AP Screw, (1) DP Screw.
